Premier Geo Grid Mats for Drainage and Mud Control


Free Shipping in the contiguous U.S.
SKU: 7-31E

Available Options

SKUSelect SetPriceDescriptionQuantity
7-317.3Box of 27 grids (Covers 32.20 sq ft)$159.00Free Shipping in the contiguous U.S.
7-317.45Pallet of 405 grids (Covers 484.38 sq ft)$2,120.00Free Shipping in the contiguous U.S.
7-317.90Pallets of 810 grids (Covers 968.72 sq ft)$3,895.00Free Shipping in the contiguous U.S.
7-317.135Pallets of 1215 grids (Covers 1453.14 sq ft)$5,780.00Free Shipping in the contiguous U.S.

Do you require more than three pallets? Geo Grid is $2.93 per sq ft plus freight. Contact us for special pricing.

Calculate Your Square Footage

Total Price: $0


Premier Geo Grid Mats for Ground Stabilization

Use in areas with gravel or grass to help prevent erosion, promote drainage, and for ground stability. Premier Geo Grid are effective in small applications or for larger areas such as parking lots and high-traffic grass areas for equestrian facilities and farms.

  • Lunging areas, round pens, paddocks, corrals and runs
  • Pastures, gate areas, pathways, walkways
  • Dog kennels and canine runs
  • Base support for parking areas, trailer parking, RV parking, utility vehicle access, driveways, service roads, shed, and more!

Economical Price

Built to Last with Precision Molding

Horizontal and Vertical Drainage

Eliminates the Need for Expensive Drainage Systems

Flexible Purchasing Options

Free shipping in the contiguous U.S.

long box and ground grid
Available in boxes of 27 individual grids. One box covers 32.20 sq ft.
Available on pallets with 45 layers of connected grids, convenient for construction site installation. One pallet covers 484.38 sq ft.
Each pallet layer is 39.33” x 39.33” x 1.875” and weighs 12.6 lbs.
Call us for special pricing over 3 pallets.
pallet of stacked ground grids

Premier Geo Grid Uses

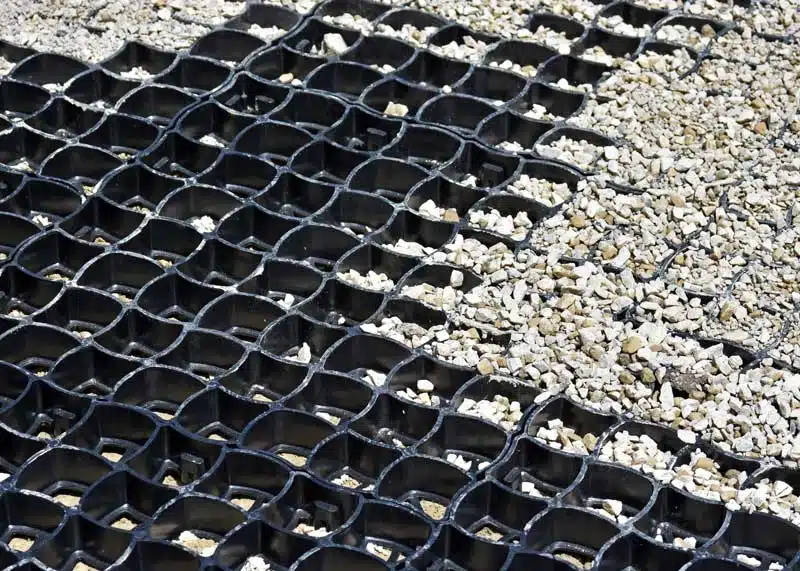

Premier Geo Grid mats stabilize any surface around your home, farm, or barn where erosion can occur and where drainage is needed for standing water or stormwater run-off.

  • Premier Geo Grids can be used for all types of surfaces and have high load specifications.
  • Grids can handle up to 25 tons per sq ft when set on suggested base and filled.
Ground layers

Premier Geo Grid Details

Premier Geo Grid mats are made from HDPE, reinforced high-density Polyethylene. Premier Geo Grids are non-toxic and safe for horses and other animals.

Geo grid mat size
Each grid section is 13.11” L x 13.11” W x 1.875” T and weighs 1.4 lbs
Cell walls are 1/8" thick
Temperature resistant from -40 to 220 degrees fahrenheit
Geo Grid mats assembly

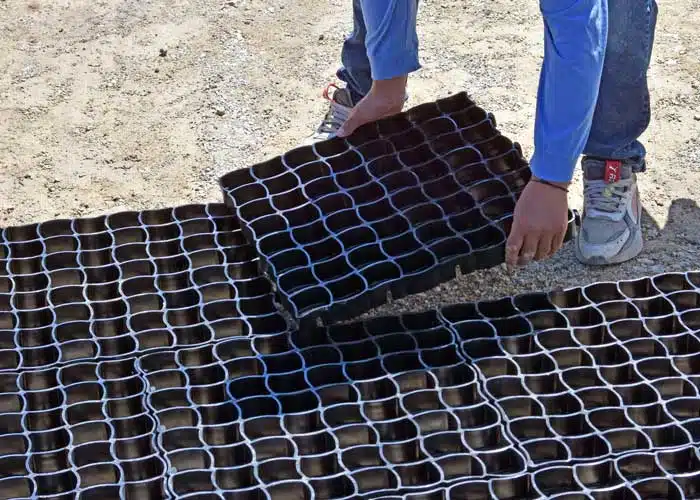

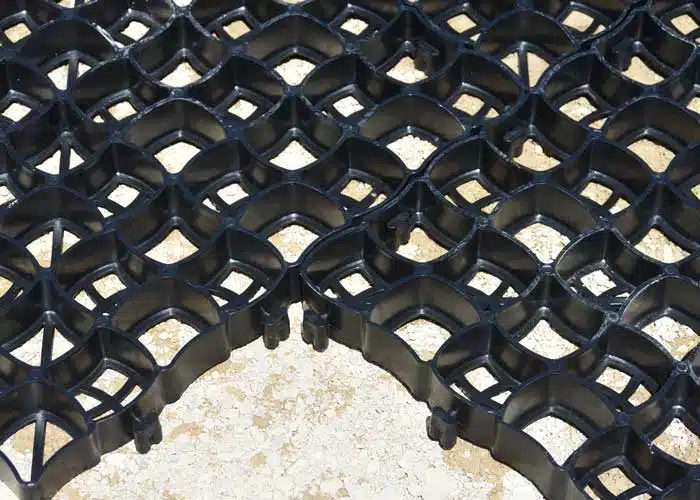

Interlocking Sections with Easy Assembly

  1. Safety and compact lock forms a large mesh structure.
  2. The edge double reinforcement, reliable and practical, provides support for each grid.
  3. Premier Geo Grids lock into place, but are easily disassembled when needed.

Looking for Arena drainage? See OTTO Sport Horse Arena Base Mats
