The durable solution for equestrian arenas and paddocks!
The OTTO-PerforatedMat is an arena base system that offers drainage, stability, shock absorption, and arena longevity. The system creates a true all-weather arena that many riders need to maintain hectic training schedules. Clearly the world’s best arena base mats, OTTO Sport has chosen Premier Equestrian as its official North American distributor.
The OTTO-PerforatedMat is made of resilient material, specially designed for equestrian sports. It’s used in equestrian arenas and paddocks, set underneath the footing to provide maximum drainage, water conservation, concussion mitigation and stability for horse and rider.
OTTO-PerforatedMats Pricing for Arenas
$34 per mat, Item #7-026
Each mat is 46″ x 33.5″ (1 sq. meter or 10.7 sq. ft.). Price per square foot is $3.18
Installation, aggregates, and freight additional. Prices are subject to change.
To order OTTO-PerforatedMats for your arena call us at 801-446-1857
OTTO-PerforatedMats for Paddocks
Premier Equestrian is the official North American distributor for OTTO Sport
Features of the OTTO-PerforatedMat
Stability and Concussion Absorption
OTTO-PerforatedMats increase the stability of the footing with a system of traction-knobs on the upper side of the mat. The traction-knobs are set at differing heights to maximize the stability. This guarantees a secure surface, preventing horses from slipping – a clear advantage during sharp turns.
OTTO-PerforatedMats absorb up to 40% of the energy caused by the hoof fall. The German Association for Technical Inspection (TÜV) confirmed the mat minimizes shock and concussion on impact. The mat provides this grip while allowing some movement of the hoof, minimizing concussion and hyper-flexion of tendons and ligaments during each phase of movement. Read More: OTTO-PerforatedMat Shock Absorption Test Report ( PDF)
Locking-rings —The tapered locking rings on the bottom side of the mat prevents all lateral shifting of the mats. Rocks cannot migrate up to the substructure, nor will sand and footing travel down under the mats. This ensures a proper and durable separation of footing and drainage layer.
Separation of Footing & Substructure
Sand cannot get under the mats, eliminating upward shiftings. “Locking rings” on the underside ensure safe anchorage of the mat in the base layer and prevent lateral shifting. Drainage and subbase cannot get destroyed.
Well-performing expansion joint — Any material tends to expand when warming and contract when cooling. For large areas like paddocks or equestrian arenas, even a slight expansion has a great impact. Systems without expansion joints will bulge out when warming. Sand can trickle down in the emerging cavities, forcing the mat up and dislodging it from its initial position.

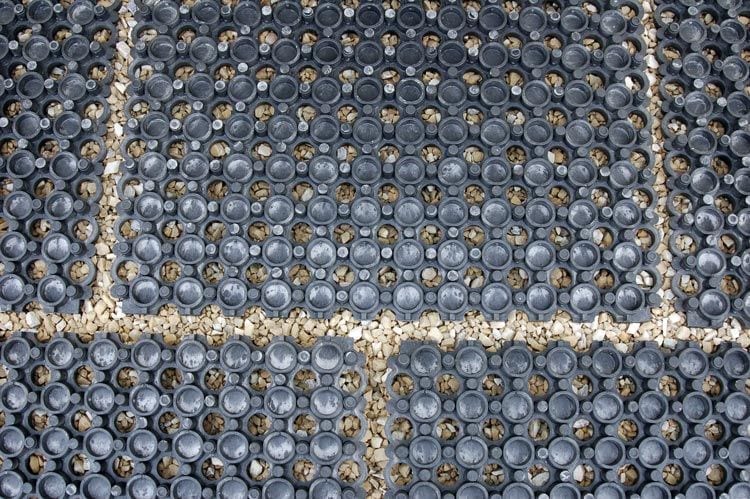

A gap of approximately 1.5 inches is set between each mat. The structure of the bottom side and weight will lock the mats into place. Sand cannot get under the mats, eliminating bulging and shifting of the surface.
No other drainage method can match the amount of water an OTTO-PerforatedMat System can remove. Holes in the mats provide immediate drainage of excess water into the drainage layer, making the arena useable immediately after heavy rain. The layer under the mats creates a pathway for high volume water flow. Traditional arena bases are designed for water to flow over them, slowing down the drainage of your arena base. OTTO-PerforatedMats are designed to allow water to flow through them thereby solving all of these disadvantages.
OTTO-PerforatedMats are designed with a water retention system that holds up to one gallon per mat. That equals 1,200 gallons for a standard 20 x 60 dressage court. The entire surface maintains even hydration for a more consistent footing. This provides a correct, even, and consistent moisture level across the entire surface, thereby decreasing costs and increasing surface performance.
OTTO-PerforatedMats are manufactured from recycled synthetic materials, which actively contribute to environmental protection and sustainable development. Quality management also includes regular screenings conducted by the German Association for Technical Inspection (TÜV) that approve compliance with statutory regulations for soil and groundwater protection. According to this, the OTTO-PerforatedMats comply with all standards set by the German“Bundesbodenschutz-Verordnung” (Federal Soil and Groundwater Protection Order).
Durability and warranty — OTTO-PerforatedMats have been installed on more than 5,000 equestrian facilities throughout the world and have impressively proven maximum performance and durability. OTTO Sport gives a 20-year warranty on the Mats when installed according to specifications.
Longevity of Surface — OTTO-PerforatedMats creates a proper and durable separation between the footing and the substructure. This increases the lifespan of the arena. Stones will not migrate up from the drainage layer into the sand footing, and sand will not migrate down into the drainage layer. This ensures a long lasting arena surface that remains consistent from installation into the future.
Equestrian Arena Construction Scheme of Layers
This construction is based on the three-layers model (sub-base layer – upper base – footing). First, topsoil should be removed and subsoil be compacted to get an even and stable surface. For the construction of outdoor arenas, a light slope of about 1.5% is necessary. For indoor arenas a slope is not necessary.
Contact Premier Equestrian to discuss your arena and paddock needs at 801.446.1857
How Arena Surfaces Affect Horse Biomechanics
Every stride is influenced by how the hoof interacts with the ground and the various qualities of the arena layers. An ideal arena surface allows horses to move efficiently, minimizes concussion, absorbs shock, provides support, and returns energy back to the horse. Watch this video to understand how different surfaces affect the biomechanics of the horse.
Premier Equestrian is the official North American distributor for OTTO Sport
For more information about the OTTO-Perforated Mats call us at 801-446-1857
OTTO Sport has been a Global player in riding arenas for 25 years. This family business is run by passionate riders and horse enthusiasts. OTTO Sport can be seen at high level competitions and farms all over the world. Alltech FEI World Equestrian Games 2010, Lexington KY • FEI World Equestrian Games Aachen 2006 • FEI World Equestrian Games Rome 1998 • FEI European Jumping Championships Madrid 2011 • FEI European Dressage Championship Herning 2013 • Rio de Janeiro, Brazil 2016
Premier Equestrian – Global Footing Experts
Official Footing Supplier of US Equestrian
*Please Note: Premier Equestrian can guide you to find a footing solution suitable for you and your budget. However, unless you are contracting our consulting services, choosing the correct sand and mixing the product is your responsibility. Results can and will vary depending on what material is available in your area. If you choose to perform your own installation, which many people do, Premier Equestrian can not be and is not responsible or liable for your installation.
Sand Note: All our footings are designed to be mixed with sand. There are, however, significant variations in sand in each area. Not all sands are appropriate to use as footing for your equestrian arena. There are many factors you should consider in determining the appropriate sand, including, without limitation, your riding style, the number of horses using the ring and the duration of such ring use, watering capability for the ring, the status of any current existing footing materials, seasonal weather conditions, and whether you ride on an indoor or outdoor horse arena. Combining Master’s Blend Footing with the correct type and depth of sand is required in order to build a safe arena surface. Please choose properly sized arena sand based on your proposed use. Feel free to call and discuss your arena questions with one of our representatives today!
“It’s important that the soil is neither too hard nor too smooth. For horses, the soil has to be a little skidding, so it shouldn’t be too blunt. Additionally, the soil has to be water-permeable and ought to have a good degree of moisture. It should neither be muddy nor too dry.
OTTO Sport mats fulfill these requirements. We also use OTTO mats in our indoor arena as we need a soil which is level but not slippery. The knobs on the mats provide a good consistency so horses will find a strong foothold.”Klaus Balkenhol
