Description

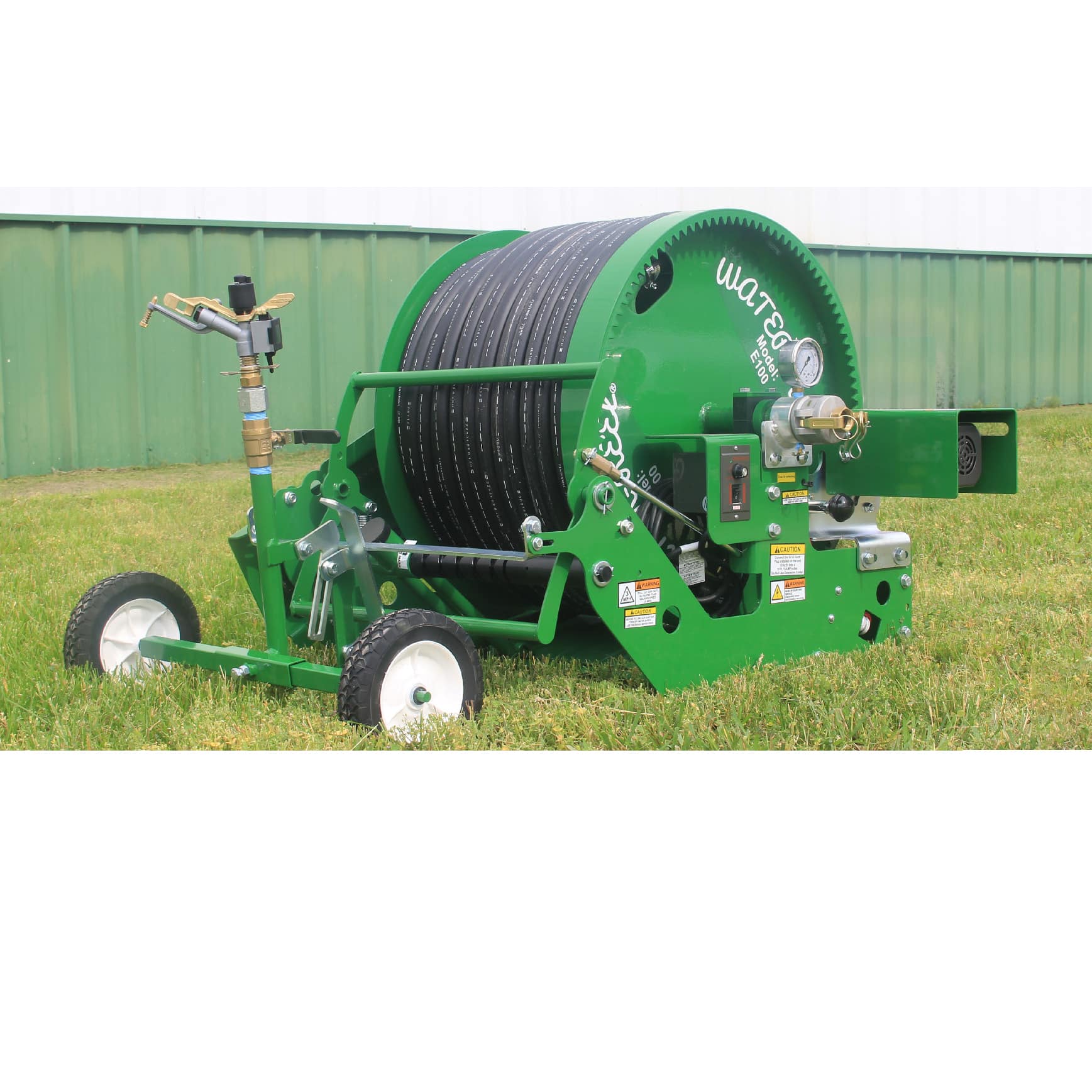

KIFCO Model E100 Water Reel
Reliable Stationary Watering for Arenas, Paddocks and Grass
The Kifco E100 Water-Reel is a compact, stationary irrigation system for horse arenas, paddocks, pastures, and gardens. Powered by a 110V outlet, it provides uniform coverage with automatic operation—no hoses, no hassle.
With an electric motor, adjustable retraction speed, and auto shutoff, the E100 delivers professional performance for farms, equestrian facilities, and landscapes. 1-Year Manufacturer Warranty included.
Water-Reel Uses
The Kifco E100 Water-Reel is a compact, stationary irrigation system designed for arenas, paddocks, and small green spaces. It delivers effortless, automatic watering—perfect for dust control and light turf irrigation.

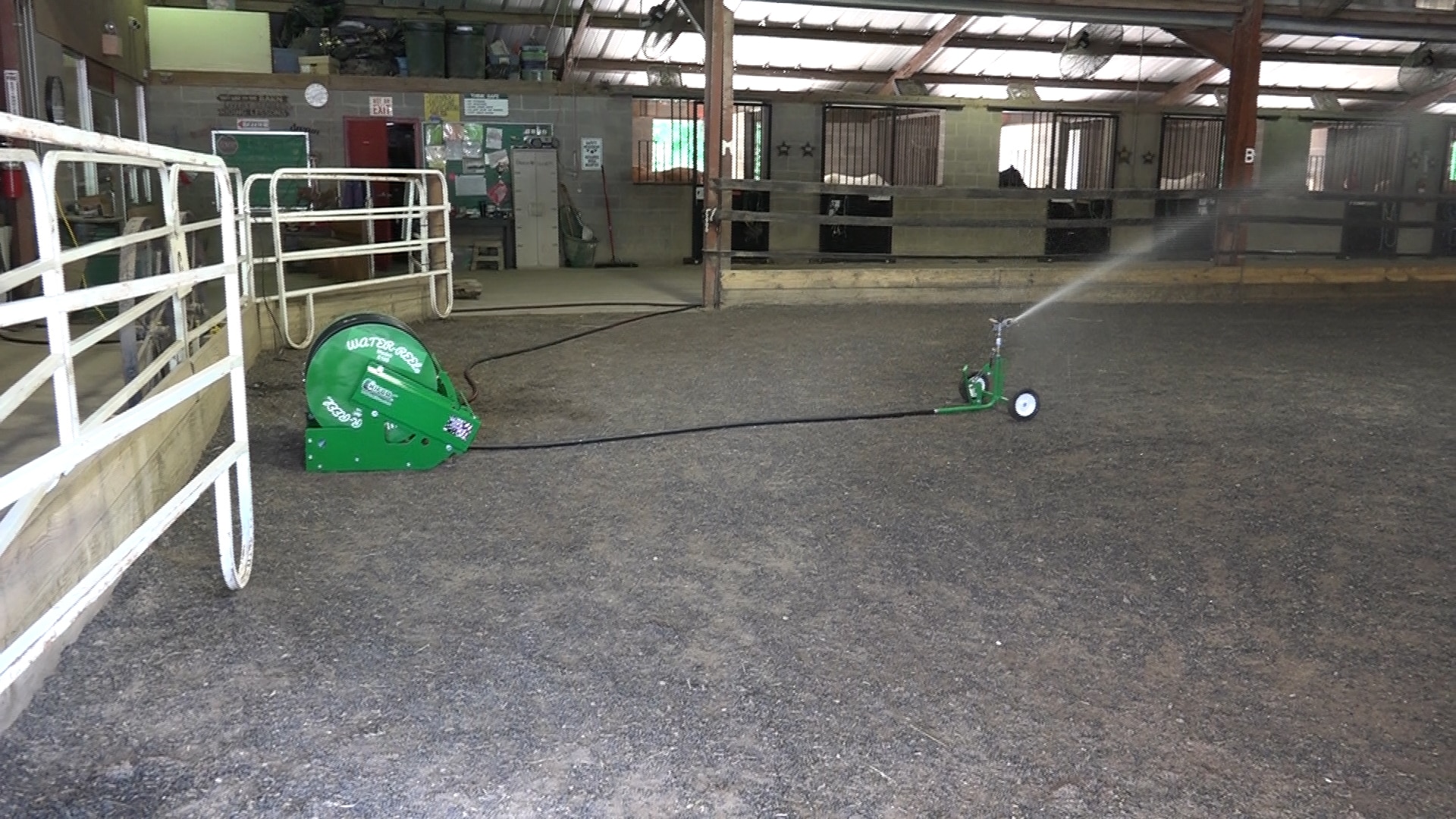

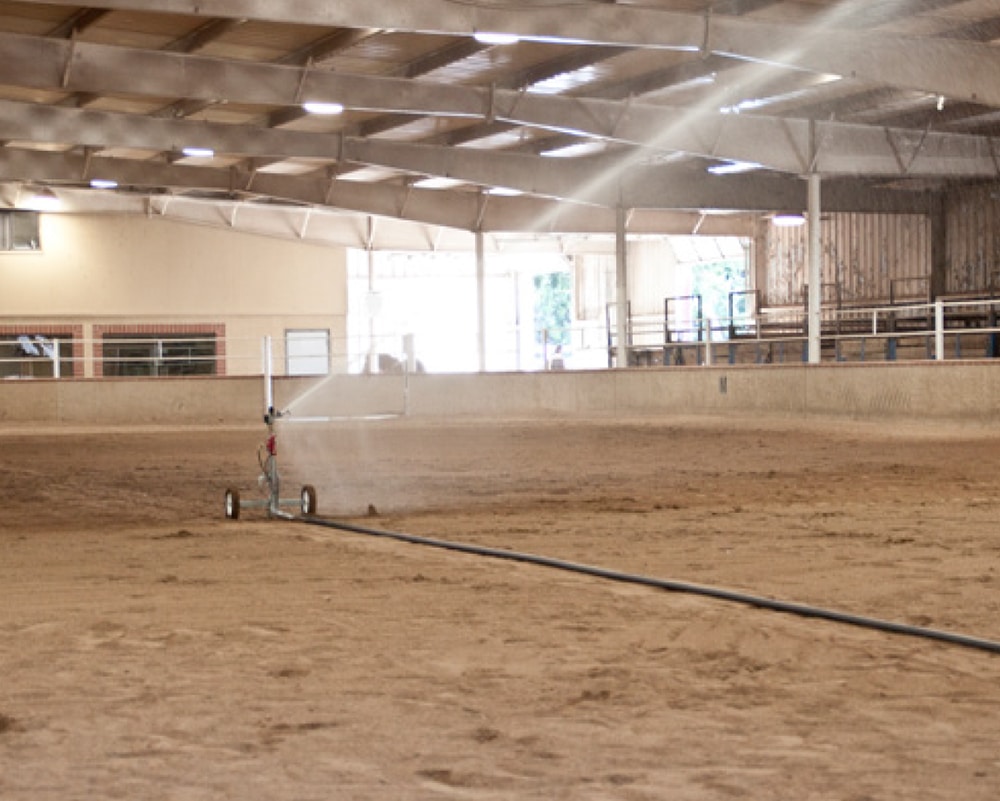

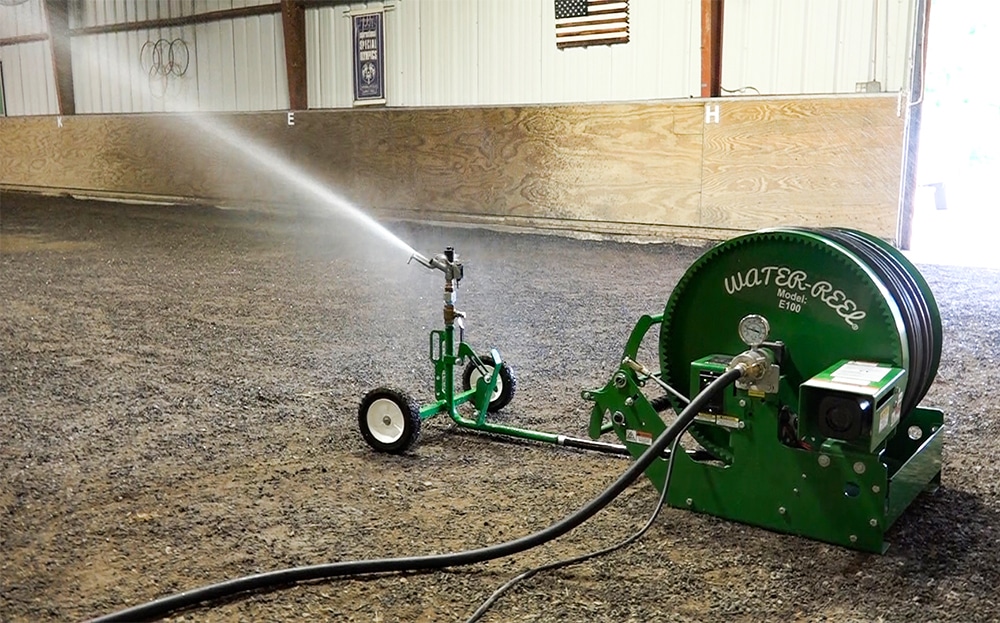

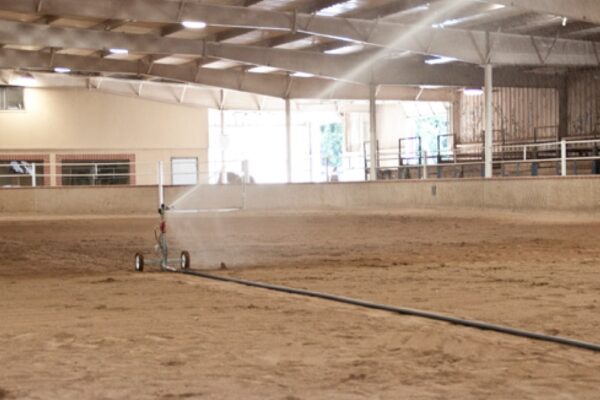

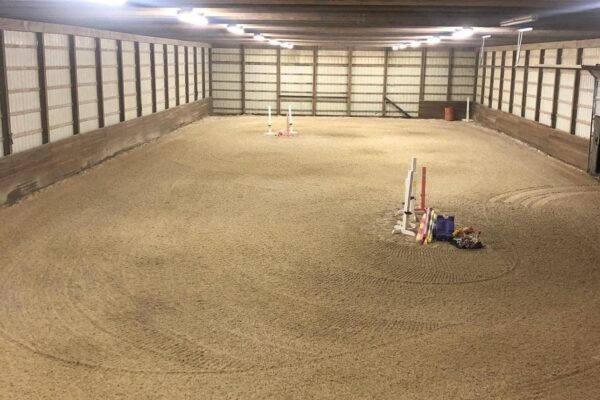

- Indoor and covered horse riding arenas

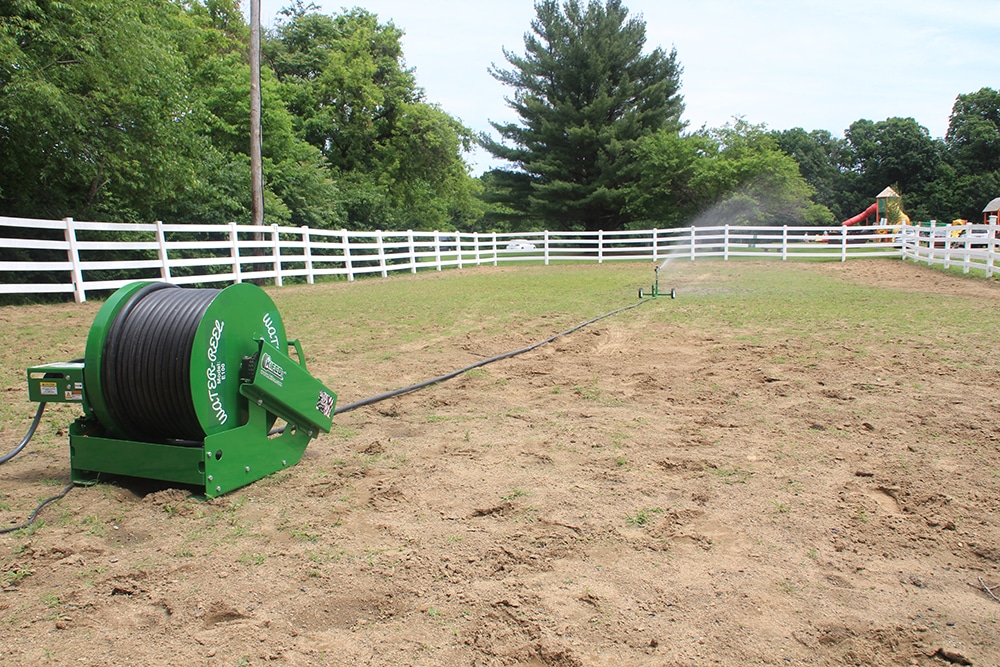

- Small paddocks and livestock turnout areas
- Equestrian pastures and residential grass zones

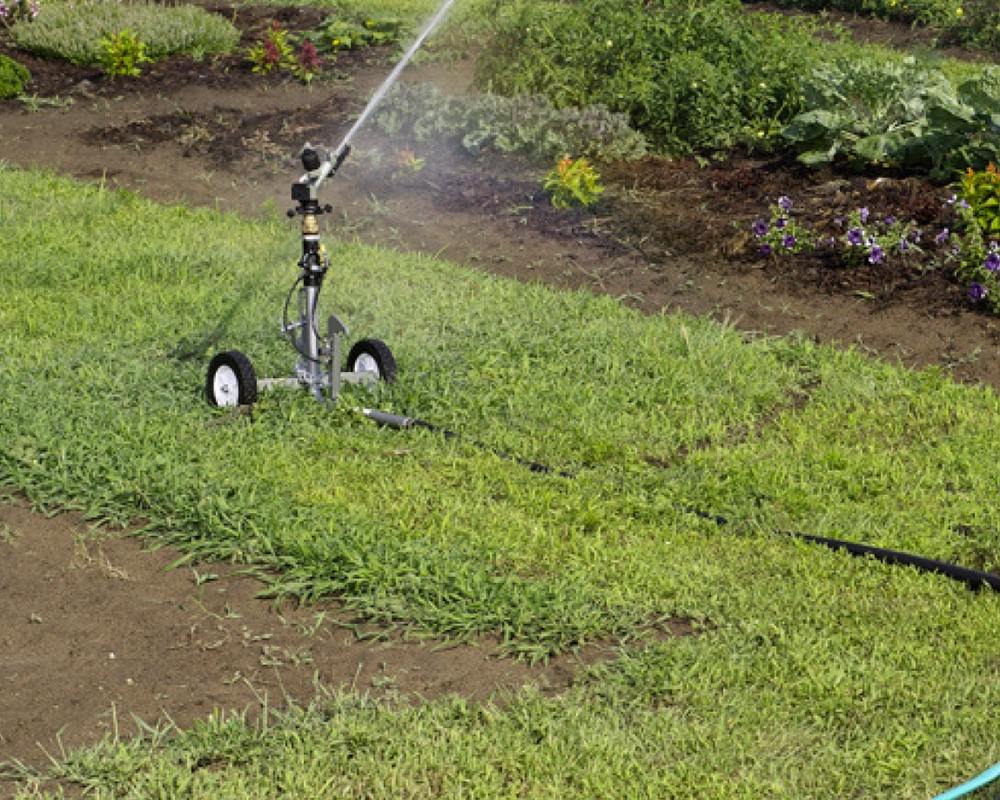

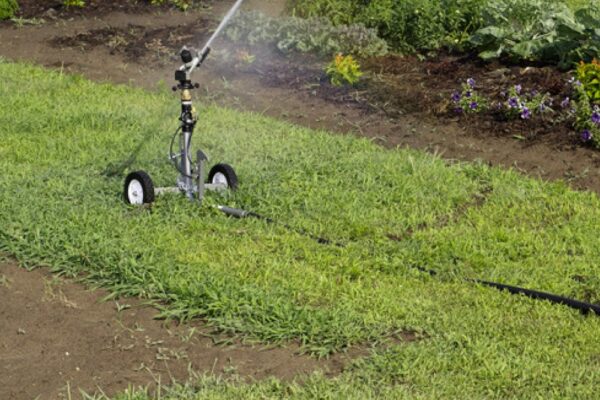

- Home gardens, orchards, and landscape beds
- Small-scale vineyards and specialty crop areas
- Repetitive irrigation for fixed-location installations
Features & Benefits
Stationary Design
Ideal for indoor arenas, paddocks, gardens, and smaller areas —fixed placement, no wheels.
Electric Drive System
Runs on 110V power with waterproof cable and adjustable speed control. Operates on 23–73 PSI and 3–12 GPM.
Automatic, Unattended Operation
Features auto shutoff, sprinkler selector valve, and mechanical levelwind for smooth, tangle-free retraction.
Built to Last
USA-made with a rugged frame. Includes the Sime Silver Sprinkler for wide, even coverage.

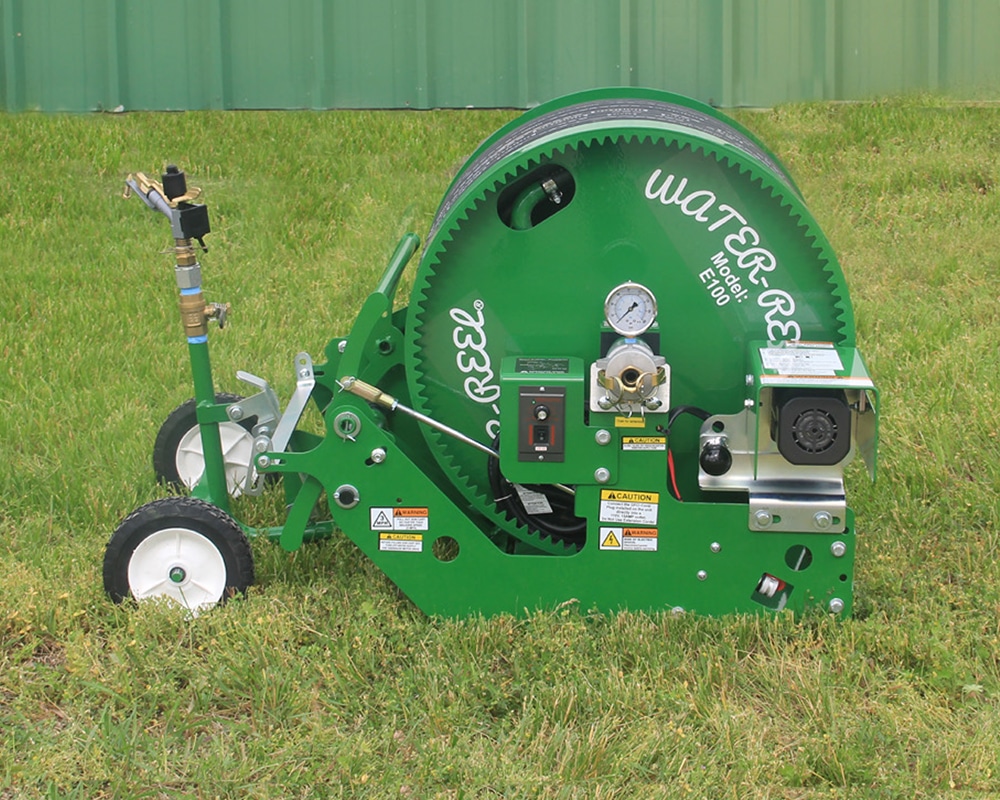

E100 Water Reel Specs
| Feature | Details |
|---|---|
| Application Area | 0.28–0.44 acres per run |
| Tube Size | 0.89" ID x 180' MDPE |
| Irrigation Range | 58–86 ft wide × 209–223 ft long |
| Drive System | 110V Electric Motor (15' waterproof power cord) |
| Flow Range | 3–12 GPM |
| Pressure Range | 23–73 PSI |
| Retraction Speed | 30–160 ft/hour |
| Full Run Time | 1.1 – 6 hours |
| Sprinkler Included | Sime Silver |
| Hose | 15 ft supply hose included. Additional 50 ft hoses available. |
| Weight | 170 lbs dry / 270 lbs with water |
| Chassis Size | E1 |

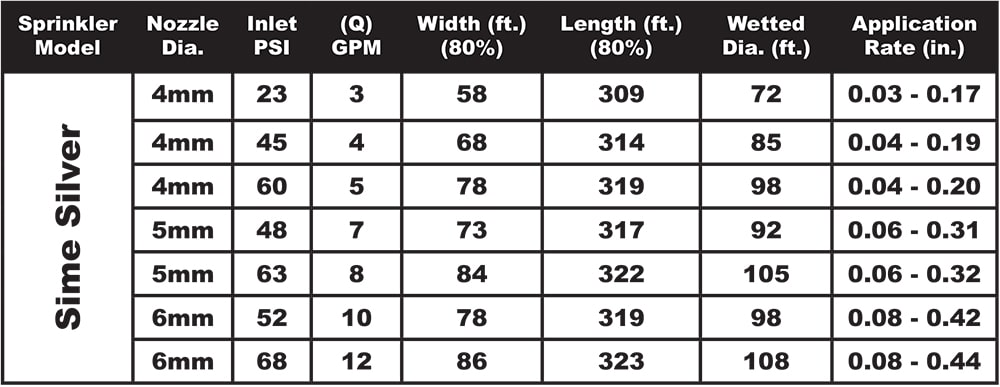

Sprinkler System
Included with the E100, the Sime Silver is ideal for residential wells and lower-pressure water systems. It delivers gentle, even coverage—perfect for arena dust control and light turf irrigation without disturbing footing.
Standard 15′ Supply Hose
A 15-foot supply hose allows you to position the unit near your water source. Need more flexibility? Add an optional 50′ hose for extended reach without sacrificing pressure.
Requirements for Water Pressure, Flow Rate & Coverage

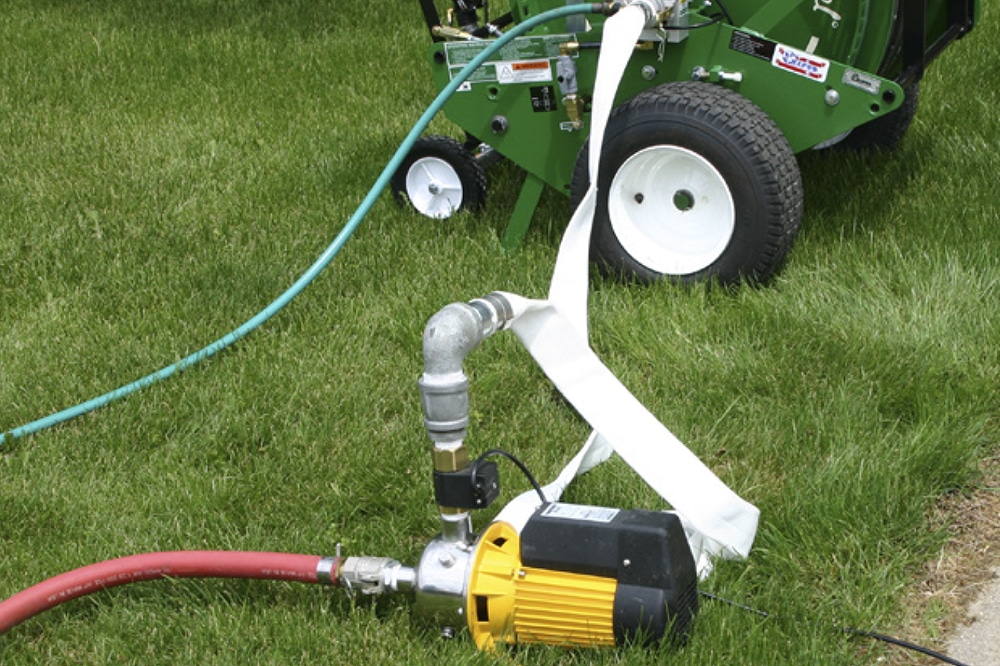

Optional 1Hp Electric PSI Booster
For best results, match your water pressure (PSI), flow rate (GPM), and coverage area with the right Water-Reel model.
If your water source is below the minimums, a PSI Booster Pump is recommended to maintain reliable coverage and retraction.
| Requirement | E100 Specs |
|---|---|
| Minimum PSI | 23 PSI |
| Minimum Flow Rate | 3 GPM |
| Inlet Connection | ¾″ garden hose |
| Typical Coverage Width | 58–86 ft |
| Booster Pump Needed? | • If pressure is under 23 PSI or flow is under 3 GPM • Using a hose longer than 50 ft |
